5D.L8C02.001

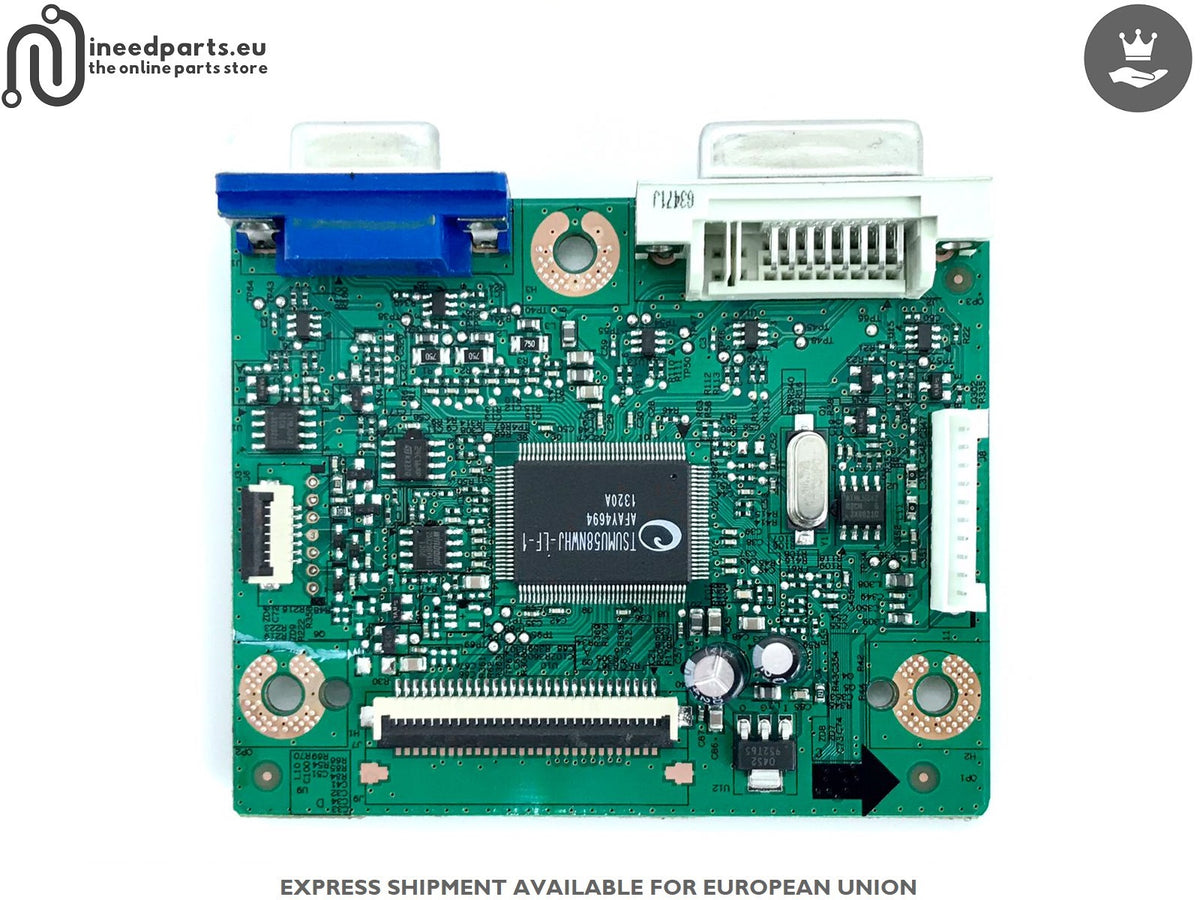

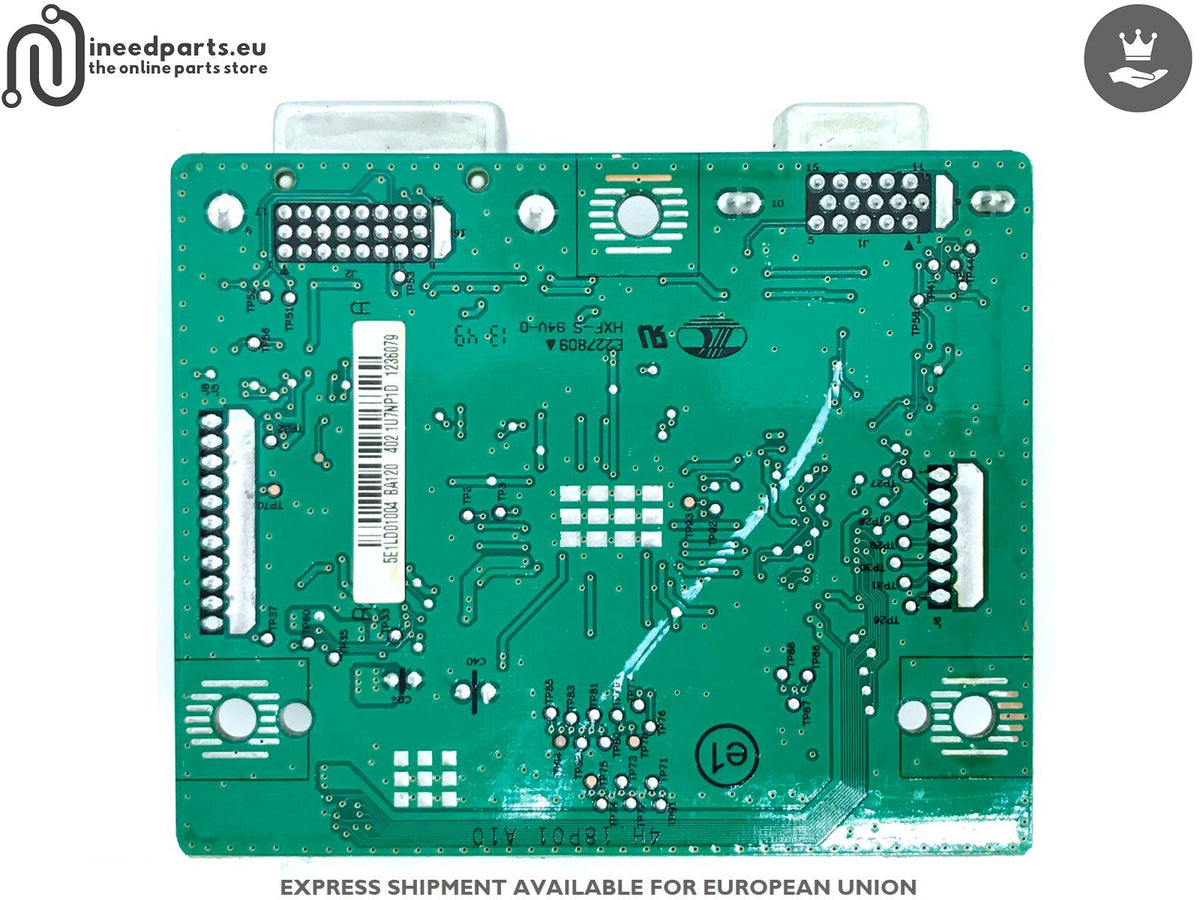

Genuine Replacement Interface Board for BenQ LCD G2255 Monitor, with TSUMU58NWHJ-LF-1 chipset
Part condition : NEW
iNeedParts stock code: 5D.L8C02.001
Board (PCB) code : 4H.18P01.A10 5E.1LD01.004
Compatibility : BenQ G2255
Genuine spare part suitable for select models of BenQ Monitors. Please check the suitable model fit list to ensure that this is the correct part for your BenQ product.
For all BenQ or Zowie Products we offer Fanatical Services & Unrivaled Expertise since 1994. A little help never hurts. If repair of your product feels daunting, our engineers can lend a hand.
If you have any question or if you don't know if the part is compatible with your BenQ product, please send a message using iNeedParts Service Department Form. Can't find the part your looking for? Let iNeedParts do the searching for you : contact iNeedParts
The Interface Board is also called Analog to Digital or A2D Cards or simply Monitor Main Board. If the Interface Board for your BenQ Monitor G2255 has become defective, there's no need to worry about buying a whole new BenQ LCD Monitor - simply replace it with this spare today. This genuine spare from iNeedParts can be fitted to ensure your old BenQ Monitor is looking and working at its best once again
Repair hints :
It is frustrating when your computer's lcd monitor goes bad. Before giving it away or recycling it, though, consider repairing the monitor yourself. There are three components that, if not working properly, can render your monitor screen inoperable: the power supply board, the interface board and the LCD Panel. The Power Supply Board gives power to the backlight LED (or CCFL), and the backlight light allows you to view images on your monitor. Also, powering the interface board. Is your monitor worth repairing? Yes, if the power board or interface board is defective. Easily remove and replace these two boards for the fraction of the cost of a new monitor.
No image
If your LCD displays no image at all and you are certain that it is receiving power and video signal, first adjust the brightness and contrast settings to higher values. If that doesn't work, turn off the system and LCD, disconnect the LCD signal cable from the computer, and turn on the LCD by itself. It should display some sort of initialization screen, if only perhaps a "No video signal" message. If nothing lights up and no message is displayed, the power board can be defective. If your LCD supports multiple inputs, you may need to press a button to cycle through the inputs and set it to the correct one.
If your monitor BenQ G2255 have lines on image, or colors is mixed, or LED in green but no image, it is often a interface board failure. Its repairable and worthwhile fixing! As long as the power board is not damaged, it is very easy repair.
